Non Stop LCD Screen Digital Truck Scales In Weigh In Motion Sensors 95% accuracy

  • Non Stop LCD Screen Digital Truck Scales In Weigh In Motion Sensors 95% accuracy
Place of Origin Zhenghou`China
Brand Name Hengliang
Certification ISO
Model Number X21
Minimum Order Quantity 1 PCS
Price USD 6600-13200/PCS
Packaging Details Wooden box
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50 PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Weigh Instrument Power AC220V 50Hz
Speed 0.5~105km/h Total Weigh Accuracy ≥ 95%
Speed Error ≤ ±1km/h Error Of Axle Base ≤ ±100mm
Display Monochrome,320*240 Lattice Keyboard 12 Thin Film Keyboard
Data Store 10000 Vehicle Data Number Of Lane ≤ 8
Data Interface RS232 Camera Trigger Mode Switch Trigger
Temperature -30~+70℃ Material AL
Highlight

LCD Screen Digital Truck Scales

,

Weigh In Motion Sensors 95% Accuracy

,

Digital Scales Weigh In Motion Sensors
Leave a Message
Product Description

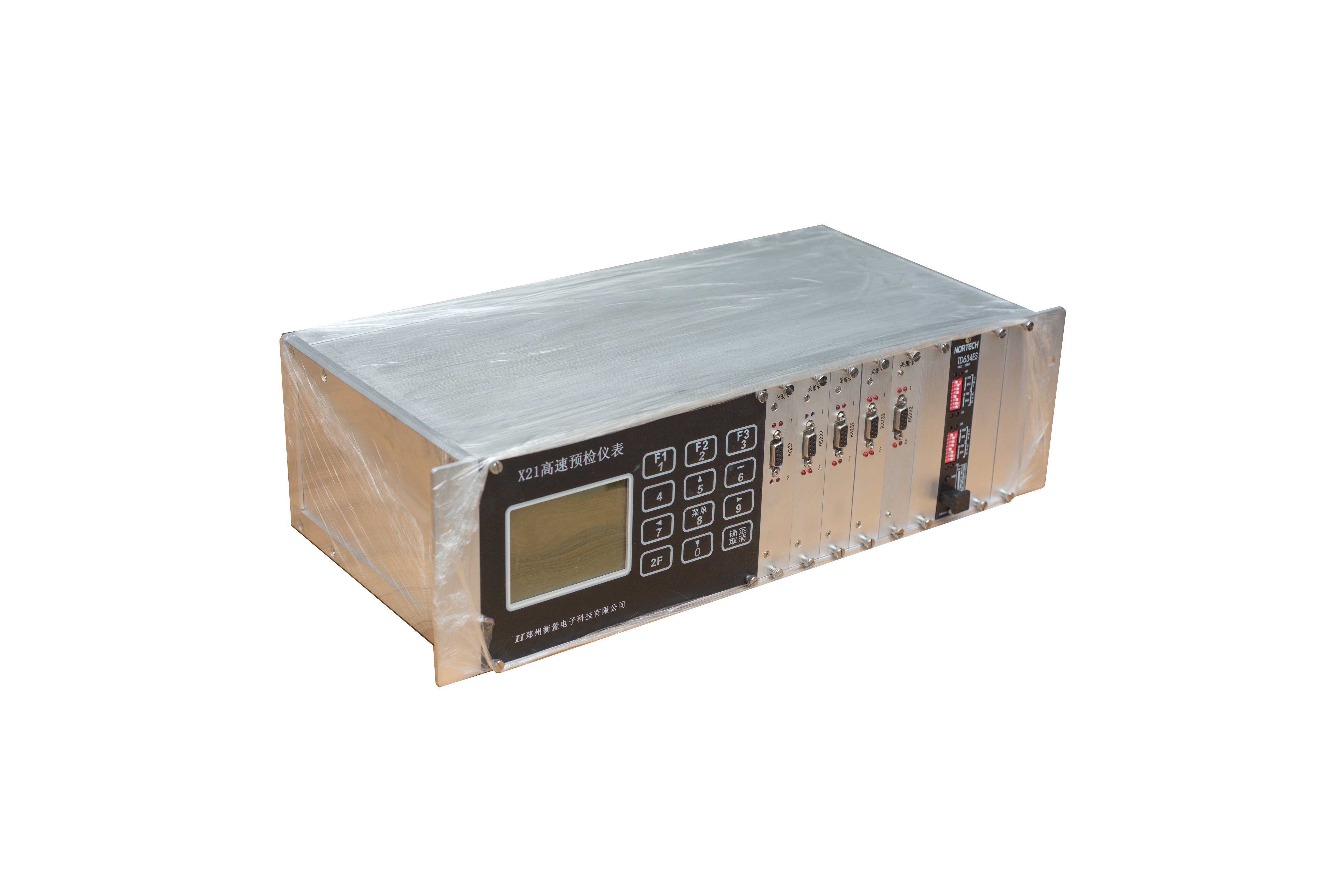

High Precision Weghing Instrument For Non Stop Weighing System

Product Description
  • Comes with LCD screen, it can be displayed axes, each axis axle load, speed, total weight and other information on the screen
  • Own key, the testing parameters can be corrected, modified.
  • Extended to eight lanes.
  • Meter boards installed lightning protection, the digital interface of field equipment use optical isolation device, anti-surge current capability.
  • Using the write-protected nonvolatile memory to store the system parameters ,and easy to view, manipulate, effectively avoid unconscious modify to weighing system parameters.
  • When the system equipment going wrong, preview instrument can transmit the corresponding fault code to IPC, the software will send a clear fault information​.



Product Parameters





Voltage

AC 220V 50Hz

Material

AL

Display

Monochrome,320*240lattice

Keyboard

21 thin film keyboard

Data Store

10000 vehicle data

Data Interface

RS232

Number of Lane

≤4(6 rows sensor)

Working Temperature

-40℃～75℃

Camera Trigger Mode

Switch Trigger

Length*Width*Height

483*225*133mm

Function

It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed,
vehicle model, gross weight and other information
