AL Load Cell With Digital Display 320*240 For Weigh In Motion Sensors

  • AL Load Cell With Digital Display 320*240 For Weigh In Motion Sensors
Place of Origin Zhenghou`China
Brand Name Hengliang
Certification ISO
Model Number X21
Minimum Order Quantity 1 PCS
Price USD 6600-13200/PCS
Packaging Details Wooden box
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50 PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Weigh Meter Voltage AC220V 50Hz
Speed 0.5~105km/h Error < ± 5% Total Weigh
Speed Error ≤ ±1km/h Error Of Axle Base ≤ ±100mm
Display Monochrome,320*240 Lattice Keyboard 12 Thin Film Keyboard
Data Store 10000 Vehicle Data Number Of Lane ≤ 8
Data Interface RS232 Camera Trigger Mode Switch Trigger
Temperature -30~+70℃ Material AL
Highlight

AL Load Cell With Digital Display

,

Load Cell With Digital Display 320*240

,

Weigh In Motion Sensors Load Cell
Leave a Message
Product Description

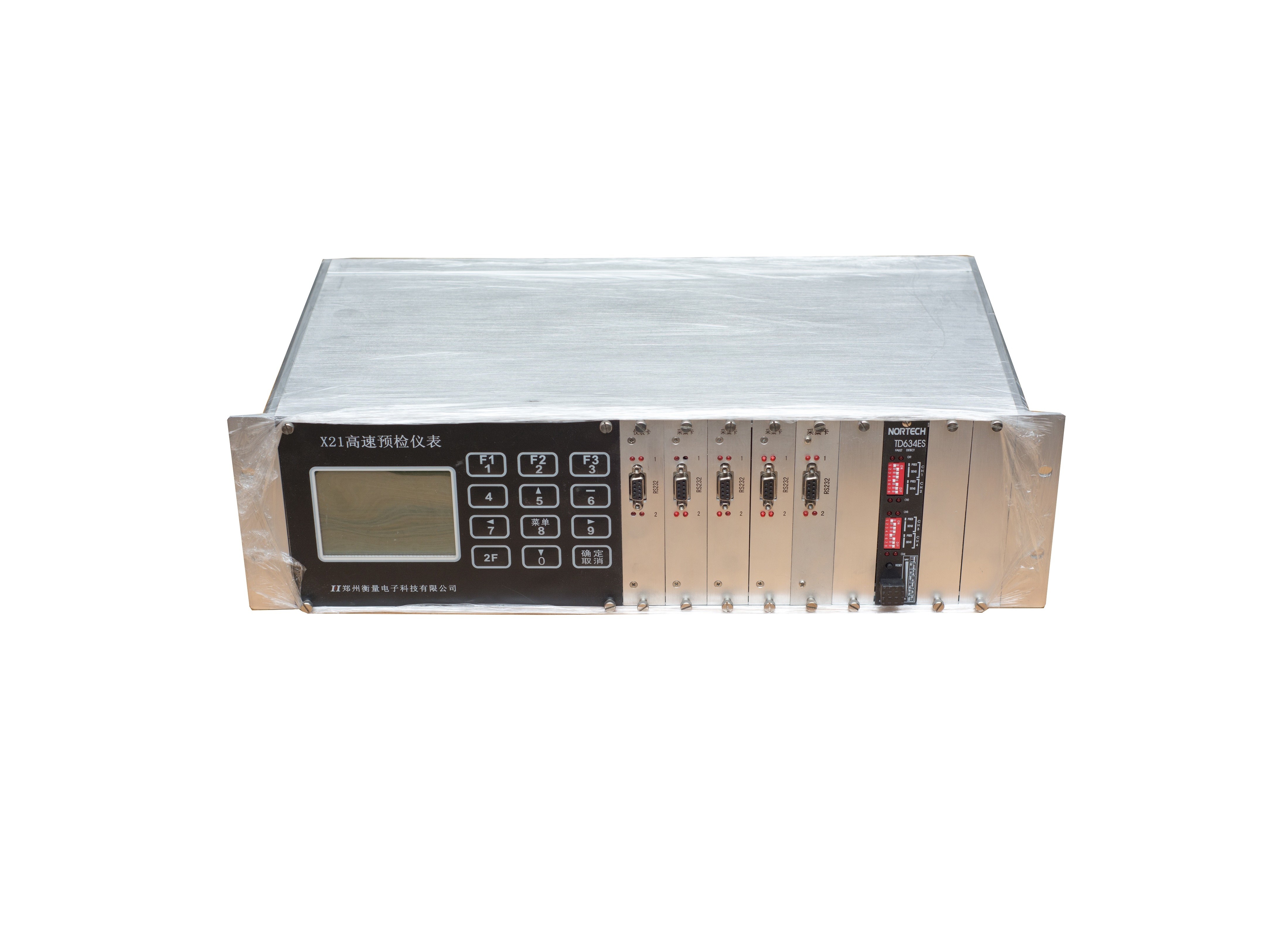

Digital Weight Indicator For High Speed Weight-In-Motion System

Product Description
  • The system use modular instrument weighing data processing techniques, the system can finish information collect, process, display, transmit, test, calibrate and other functions independently that without IPC, and can get rid of the computer independently to achieve a single test.
  • It can collect detective data of weighing sensor, coil vehicle detector detect ,work status and fault information, as upload to inspection station IPC in real-time as required, IPC’s communication protocols in line with communication procedures and technical performance requirements of the high-speed preview software that owners currently use
  • With automatic caching function, and can hold 10,000 vehicles data in recent, when sending data to the IPC fails, the data can be retransmitted to maintain uniqueness and integrity of the data.



Product Parameters



Voltage

AC 220V 50Hz

Material

AL

Display

Monochrome,320*240lattice

Keyboard

21 thin film keyboard

Data Store

10000 vehicle data

Data Interface

RS232

Number of Lane

≤4(6 rows sensor)

Working Temperature

-40℃～75℃

Camera Trigger Mode

Switch Trigger

Length*Width*Height

483*225*133mm

Function

It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed,
vehicle model, gross weight and other information
