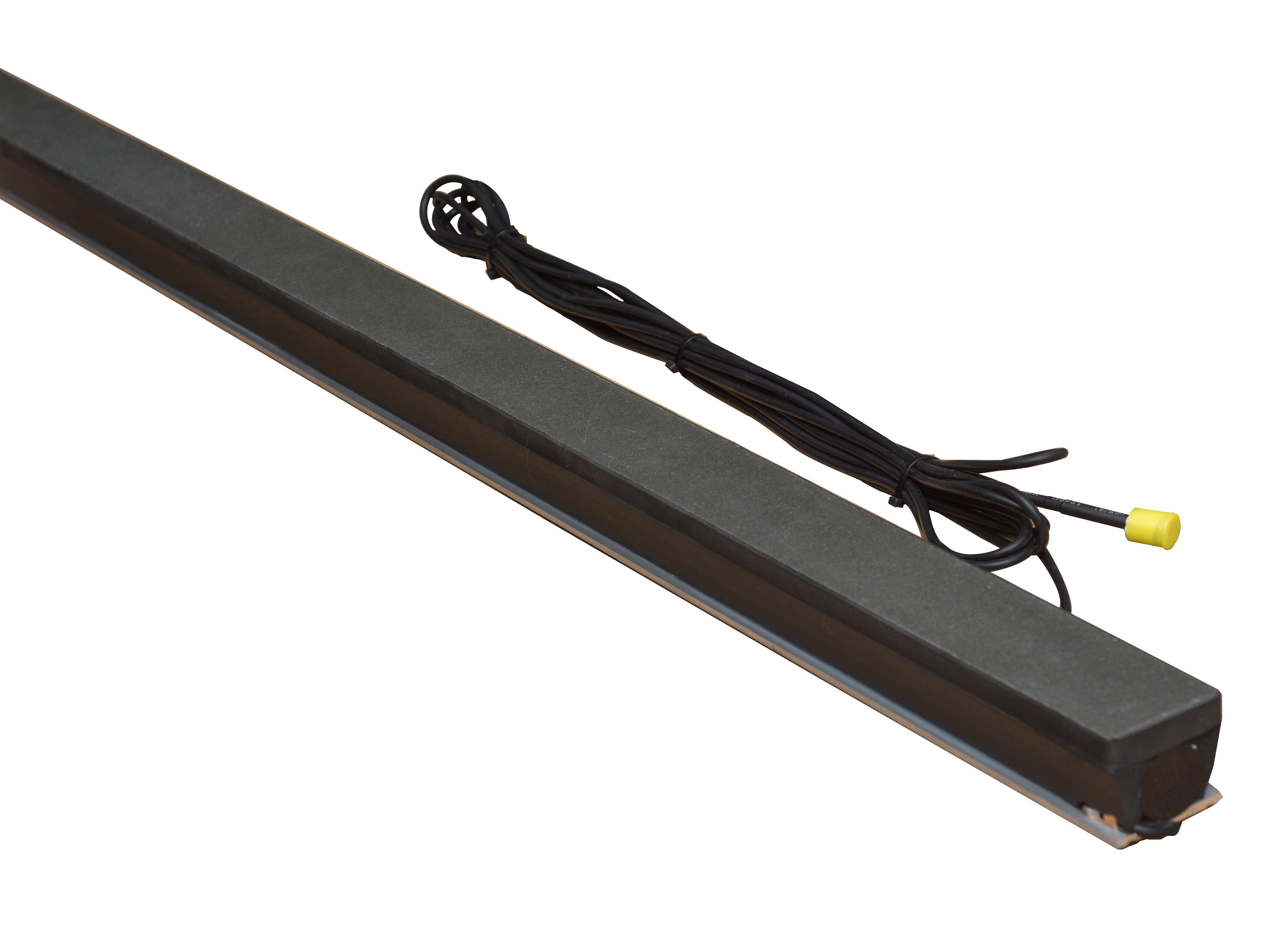

High Precision Load Cell Weigh In Motion Sensors Highway 0.5-105km / h
| Place of Origin | Zhenghou`China |
|---|---|
| Brand Name | Hengliang |
| Certification | ISO |
| Model Number | HL-S-QZ70 |
| Minimum Order Quantity | 6 PCS |
| Price | USD 1200-12000/SET |
| Packaging Details | Wooden box |
| Delivery Time | 5~7days |
| Payment Terms | T/T |
| Supply Ability | 300 PCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Weigh In Motion Sensors | Speed | 0.5 ~ 105km / H |
|---|---|---|---|
| Total Weight Error | ≤ ± 5% | Axle Load Error | ≤ ± 10% |
| Speed Error | ≤1km / H | Single Axle Rated Load | 40T |
| Maximum Overload | 150% | Nominal Sensitivity | -1.54 ± 7% PC / N |
| Sensitivity On The Sensor Length Changes | ≤ ± 3% | Linearity | ≤ ± 2 FOS% |
| Working Temperature | -45 ℃ ~ 80 ℃ | Certification | ISO |
| Highlight | Load Cell Weigh In Motion Sensors,105km/h Weigh In Motion Sensors,Highway 105km/h wim sensor |
||
Product Description
High Precision Load Cell & Highway Overload System & Weigh In Motion Sensors
Product Description
The quartz sensor with quartz crystal as the "core" has perfect linear output and consistent repetitive weighing output signals, ensuring accurate weighing stability, no signal drift and easy calibration. At the same time, the unique cutting process of quartz crystal and the unique structural form of the sensor determine its insensitivity to lateral forces (forces other than vertical downward), Therefore, even when the vehicle passes through the sensor, the behaviors such as braking, acceleration and direction change will not affect the weighing accuracy of the system.
Product Parameters
|
Velocity range |
0.5 ~ 105km / h |
|
The error range of total weight |
≤ ± 5% |
|
Axle load error range |
≤ ± 10% |
|
Speed error |
≤1km / h |
|
Single axle rated load |
30t |
|
Maximum overload |
150% |
|
Nominal sensitivity |
-1.54 ± 7% PC / N |
|
Linearity |
DC15 ~ 30V |
|
Working temperature |
-45 ℃ ~ 80 ℃ |
|
Insulation resistance |
> 100 GΩ |
|
Life |
≥ one hundred million axle |
|
Protection level |
IP68 |
