Dynamic Weighing System 40T Maintenance Free Quartz

1 SET
MOQ
USD 20000-35000/SET
Price
Dynamic Weighing System 40T Maintenance Free Quartz
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Speed Weight In Motion
Working Voltage: 220VAC
Accuracy: 90%~97%
Speed RaTE: 0.5~100km/h
Single Axle Load: 40T
Single Axle Max Overload: 60T
MTBF: ≥20000h
Temperature: -45~+80℃
Protection Level: IP68
Confidence: ≥96%
Highlight:

Piezoelectric Dynamic Weighing System

,

40T Dynamic Weighing System

,

Maintenance Free Quartz Dynamic Weighing System
Basic Infomation
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Product Description

Maintenance Free Quartz Dynamic Weighing System

Product Description





  • It has the functions of collection, statistics and transmission of information required by highway traffic investigation stations. Upload the over limit evidence collection information to the municipal off-site law enforcement management system in real time. The security performance, stability, reliability and scalability of uploaded data meet the requirements.
  • The communication interface and protocol meet the customization requirements. The forensics information of the highway over limit non stop detection point shall be uploaded in real time, and the bandwidth of the information transmission channel shall not be less than 20MBps. The network communication can automatically resume after the abnormal recovery.









Product Parameters

Weighing accuracy 90%~97%
Single axle load 40000kg
Single axle max Load 60000kg
Speed range 0.5~100km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
Data interface RJ485
Work environment -45℃～80℃,0～95%
Confidence ≥96%

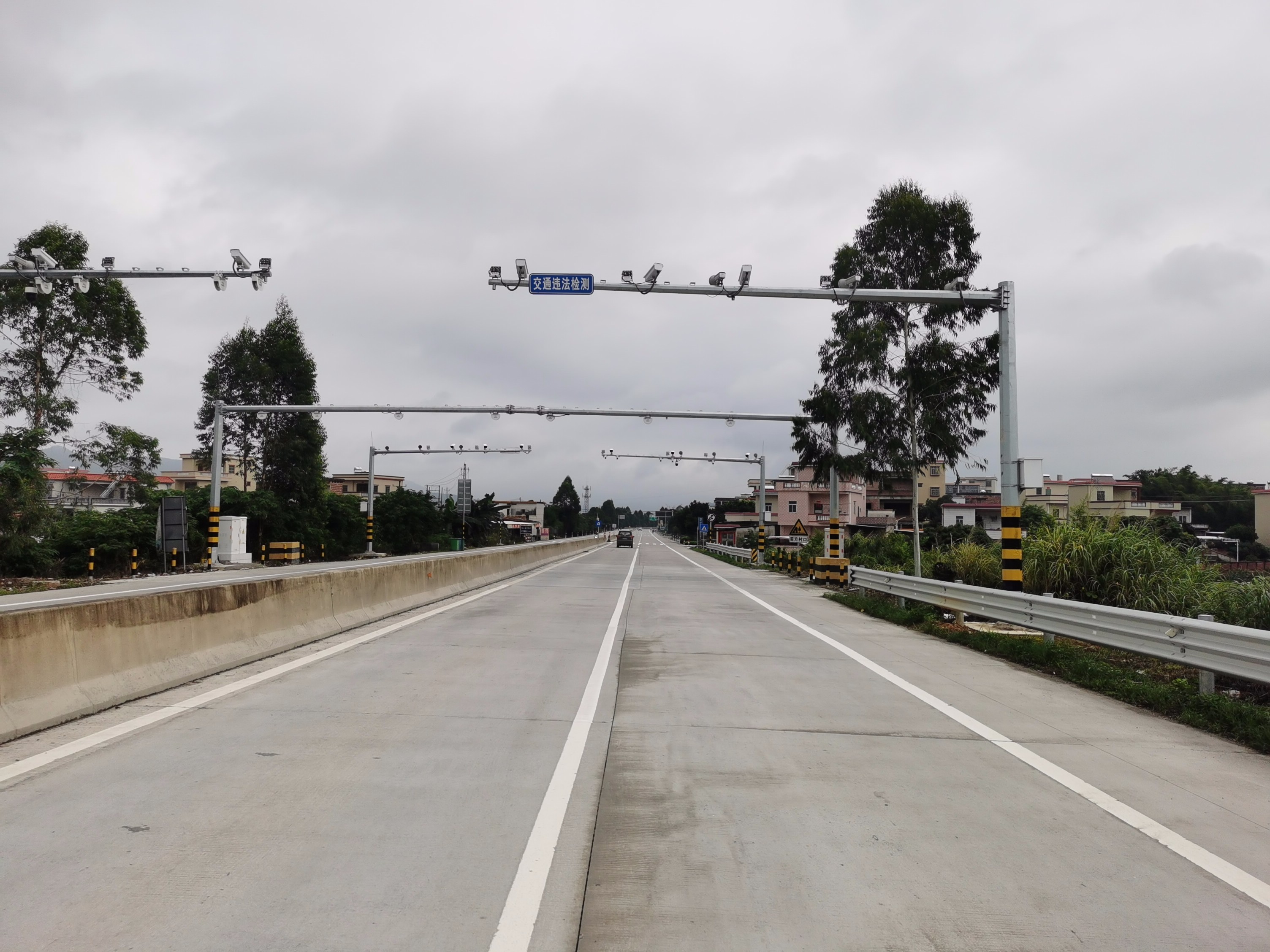

Project Case
