Home /Products/In Motion Axle Scale/Single Axle 40T In Motion Axle Scale & Axle Weighing System

Single Axle 40T In Motion Axle Scale & Axle Weighing System

1 SET
MOQ
USD 20000-35000/SET
Price
Single Axle 40T In Motion Axle Scale & Axle Weighing System
Features Gallery Product Description Request A Quote
Features
Specifications
Name: In Motion Axle Scale
Voltage: AC 220V 50Hz
Weighing Accuracy: 90%~97%
Speed: 0.5~105km/h
Single Axle Load: 40Ton
Max Overload Capacity: 60Ton (single Axle)
MTBF: ≥20000h
Temperature: -45~+80℃
Highlight:

40T In Motion Axle Scale

,

Single Axle In Motion Axle Scale

,

40T Axle Weighing System
Basic Infomation
Place of Origin: Zhenghou`China
Brand Name: Hengliang
Certification: ISO
Model Number: ZQS-40-SY
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5~7days
Payment Terms: T/T
Supply Ability: 30 SET/Month
Product Description

Single Axle 40T Axle Load Weighing System & In Motion Axle Scale

Product Description



Install Lane high-speed dynamic weighing equipment about 1km away from the overload control station (the specific location depends on different road conditions), install several sets of automatic license plate recognition cameras about 25m behind, set variable information boards and other equipment 300 meters behind the high-speed weighing device (the specific location depends on different road conditions), and set variable information signs at an appropriate location about the overload control station (the specific location depends on different road conditions), At the same time, guide signs and markings for out of gauge vehicles shall be set at appropriate positions along the road section.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h；
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃～80℃,0～95%
Confidence ≥95%

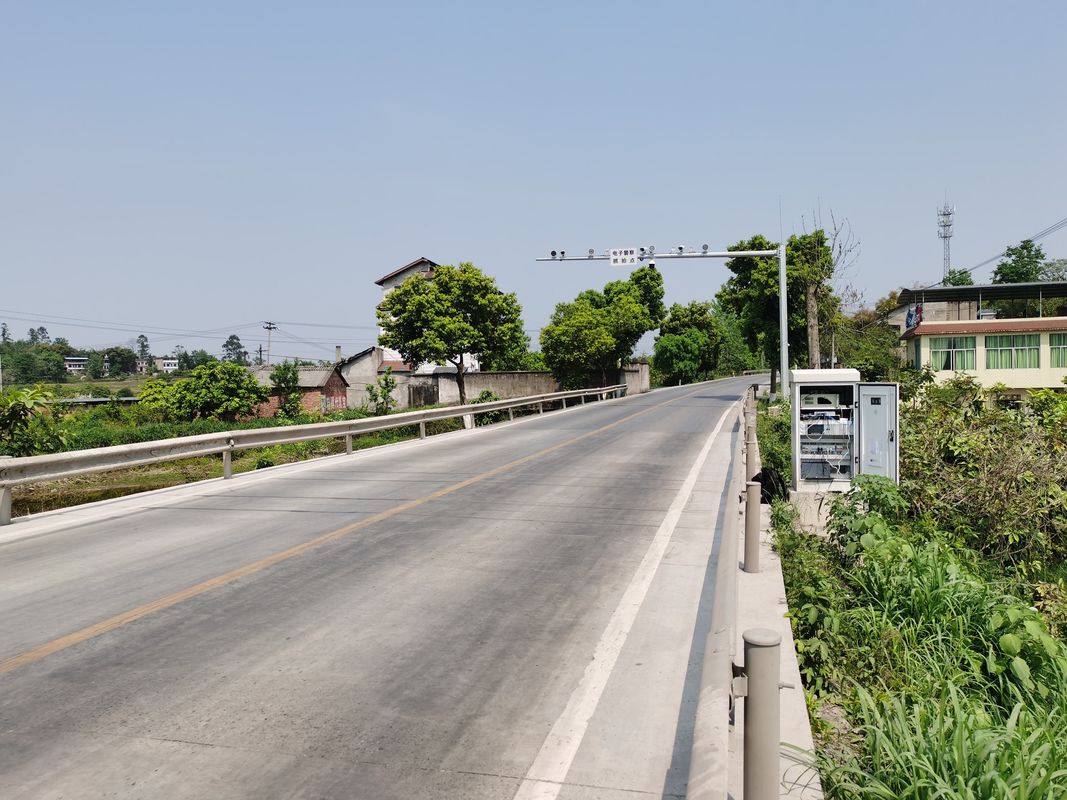

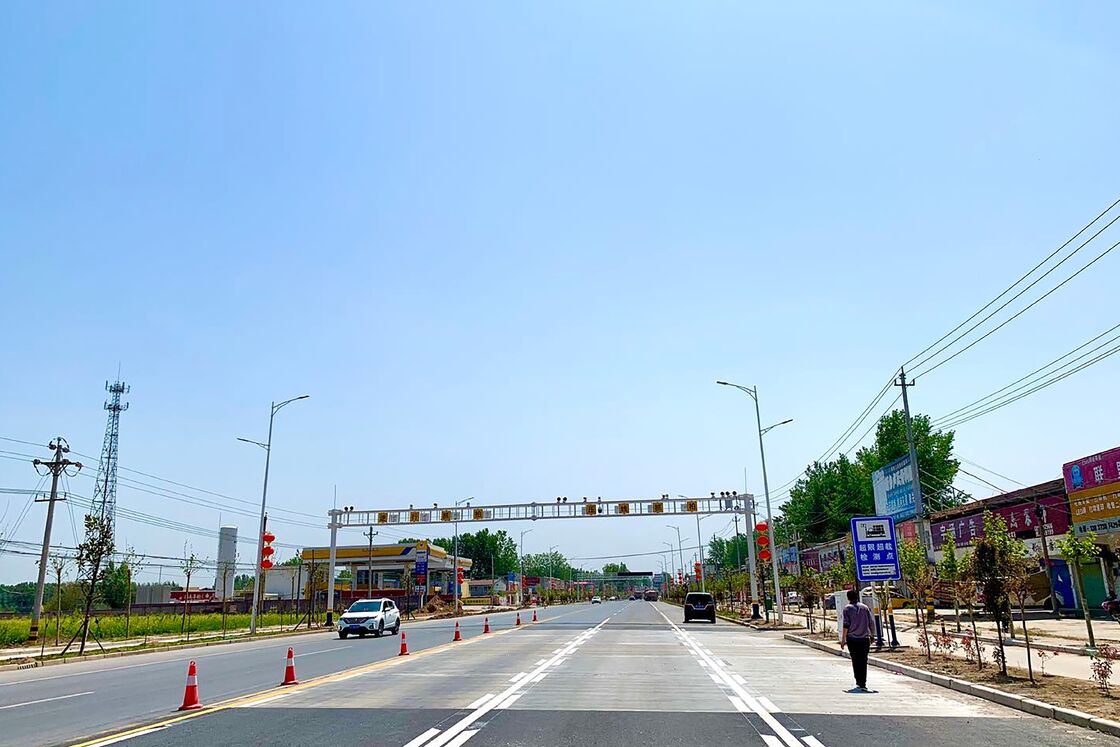

Project Case

​Single Axle 40T In Motion Axle Scale & Axle Weighing System 0
